How to Configure Radius Server on Windows Server 2016?

RADIUS (Remote Authentication in Dial-In User Service) is a network protocol for the implementation of authentication, authorization, and collecting information about the resources used. It is designed to transfer information between the central platform and network clients/devices. Your remote access (RADIUS) server can communicate with a central server/service (for example, Active Directory domain controller) to authenticate remote dial-in clients and authorize them to access some network services or resources. Thanks to this, you can use a single centralized authentication system in your domain.

In this article, we’ll show how to configure the centralized RADIUS server based on Windows Server 2022, 2019, or 2016 OSs, and how to configure RADIUS authentication on Cisco devices using the Network Policy Server (NPS) service. In this example, the RADIUS will use the AD to authenticate remote users and authorize them to access Cisco and Mikrotik switches/routers (act as RADIUS clients) command-line interface.

Installing Radius Server (NPS) Role on Windows Server 2022/2019/2016

At first, create a new security group in the Active Directory domain (for example, RemoteCiscoUsers) in which you will need to add all users that will be allowed to authenticate on Cisco routers and switches (how to add a user to the Active Directory group?).

windows radius server

Starting with Windows Server 2008 R2, the RADIUS server functionality was implemented with the Network Policy Services (NPS) role. With the NPS role, you can authenticate remote clients against Active Directory using the Radius protocol.

So, you need to install the RADIUS server role on your Windows Server 2022/2019/2016. Open the Server Manager console and run the Add Roles and Features wizard. The Remote Authentication Dial-In User Service (RADIUS) protocol in Windows Server is a part of the Network Policy Server role. In the wizard that appears, select the Network Policy and Access Services role in the role selection step.

Note. Also, you can install NPS role and management tools from an elevated PowerShell console:
Install-WindowsFeature NPAS –IncludeManagementTools

Check if the NPAS role is installed on your Windows Server host:

Get-WindowsFeature -Name NPAS

radius server windows

After the role installation is completed, open the Network Policy Server (nps.msc) in the Tools menu.

how to configure radius server in windows 2016 server step by step

To use the NPS server in the domain, you must register it in the Active Directory. In the NPS snap-in, right-click on a root and select Register server in Active Directory.

windows server radius

Confirm the registration of the server in Active Directory.

setup radius server

Also, you can register your NPS server in Active Directory with a command:

netsh ras add registeredserver

In this case, the server will be given the authority to read the properties of Active Directory user accounts to authenticate users. The server will be added to the built-in domain group RAS and IAS Servers.

configure radius server

Now you can add the Radius client. Radius client is the device from which your server will receive authentication requests. In this example, it could be a Cisco router, switch, Wi-Fi access point, etc.

To add the new Radius client, expand the RADIUS Clients and Servers section in the NPS console tree and select New on the RADIUS Clients item.

configure radius server 2016

On the Settings tab, fill the fields Friendly name, client Address (you can specify IP address or DNS name), and Shared Secret + Confirm shared password (you will use this password in the configuration of the Cisco switch/router).

Note. The shared secret password is rarely used in huge corporate networks due to the problems with the distribution of shared keys. Instead of shared passwords, it is recommended to use certificates. If you have a corporate Certification Authority deployed to implement PKI infrastructure, you can request and import a *.p12 certificate for the Radius/NPS server. Just add the certificate to the personal certification store of the Local Machine.

radius server configuration

In the Advanced tab, select Vendor name – Cisco.

windows server radius setup

You can use the PowerShell command instead of the NPS GUI to add a new RADIUS client. In this case, you can use the New-NpsRadiusClient PowerShell cmdlet:

New-NpsRadiusClient –Address "192.168.31.1" –Name "cisco2960" –SharedSecret "Zb+kp^JUy]v\ePb-h.Q*d=weya2AY?hn+npRRp[/J7d"

Configuring NPS Policies on the RADIUS Server

NPS policies allow you to authenticate remote users and grant them access permissions configured in the NPS role. Using NPS access policies, you can make a link to the RADIUS client records and the domain security group that determines the level of access to CISCO devices.

There are two types of policies on a RADIUS server:

  • Connection request policies — these policies define a set of conditions that determines which RADIUS servers should authenticate and authorize connection requests received from RADIUS clients;
  • Network policies — a set of conditions and settings that allow you to specify who is authorized to connect to your network and a list of assigned access permissions. These policies are processed sequentially from the top to down;

In our case, we will use only the NPS Network policies. Expand the Policies > Network Policies branch and select New:

windows radius server setup

Specify the Policy name, the type of network access server should remain unchanged (Unspecified).

setup radius server 2016

In the next step Specify conditions, you need to add the conditions under which this RADIUS policy will be applied. Let’s add two conditions — the authorized user must be a member of a specific domain security group, and the device you want to access has a certain name. Use the Add option to create a new condition by selecting the Windows Group type (add the RemoteCiscoUsers group) and specifying the Client Friendly Name (Cisco_*).

Note. The Client Friendly Name field may differ from the DNS name of your device. We will need it in the further steps to identify a specific network device when creating a Remote Access Policy. Using this name, you can specify, for example, a mask by which several different RADIUS clients will be processed by a single access policy.

radius server windows 2016

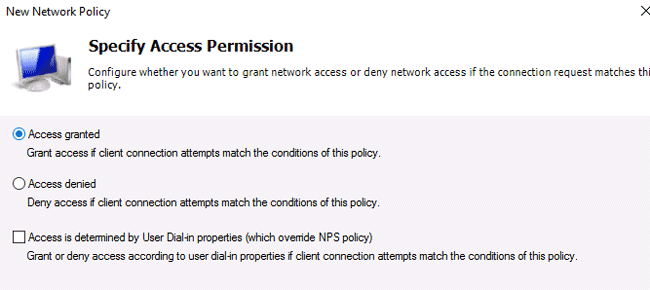

On the next screen, select Access Granted.

radius windows server

Our Cisco switch supports only the Unencrypted authentication method (PAP, SPAP), so that’s why we’ll uncheck all other options.

how to configure radius server on windows server 2016

Skip the next configuration Constraints step.

In the Configure Settings section, go to the RADIUS Attributes > Standard section. Delete the existing attributes there and click the Add button.

Select Access type > All, then Service-Type > Add. Specify Others = Login.

radius windows server 2016

Now add a new attribute in the RADIUS Attributes > Vendor Specific section. Under Vendor, select Cisco, and click Add. Here you need to add information about the attribute. Click Add and specify the following value:

shell: priv-lvl = 15

This value means that the user authorized by this policy will be granted a maximum (15) administrative access permission on the Cisco device.

windows radius

The last screen displays all selected NPS policy settings. Click Finish.

windows 2016 radius server

Hint. You can back up the current NPS server configuration to the XML file using the command:
Export-NpsConfiguration -Path c:\ps\backup_nps.xml

If you need to restore the NPS configuration from a previously created backup file, run:

Import-NpsConfiguration -Path c:\ps\backup_nps.xml

When creating and planning RADIUS policies, pay attention to what matters in their order. Policies are processed from the top to down, and when it turns out that all the conditions in the next policy are met, their further processing is terminated. You can change the priorities of policies in the NPS console using the Processing Order value.

install radius server 2016

To enable the user account to be used for Radius authentication, open the Active Directory Users and Computers console (dsa.msc), find the user, open its properties, go to the Dial-In tab and select the Control access through NPS Network Policy option in the Network Access Permission section.

windows server 2016 radius server

Also, you can check the current option value using PowerShell:

Get-ADUser richard.doe -Properties msNPAllowDialin -Server dc1.theitbros.com

If the above command did not return any result (empty), this means that the default value “Control access through NPS Network Policy” is used.

If you want to reset this user attribute to the default state, use the command:

Set-ADUser richard.doe -Clear msNPAllowDialin -Server dc1.theitbros.com

Or you can reset this attribute for all users in the specific Organizational Unit (OU) using the LDAP filter:

Get-ADUser -SearchBase "ou=Users,ou=Paris,dc=theitbros,dc=com" -LDAPFilter "(msNPAllowDialin=*)" | % {Set-ADUser $_ -Clear msNPAllowDialin}

Configuring RADIUS Setting on Cisco Devices

After creating the policy, you can proceed to configure your Cisco routers or switches for authentication on the newly installed Radius NPS server.

Because we use domain accounts for authorization, the user credentials must be transmitted over the network in an encrypted form. To do this, disable the telnet protocol on the switch and enable SSHv2 on Cisco using the following commands in configuration mode:

configure terminal
crypto key generate rsa modulus 1024
ip ssh version 2

AAA works in such a way: if the response from the server is not received, the client assumes unsuccessful authentication. Be sure to create a local user in case the RADIUS server is unavailable for some reason.

You can create a local user with the following command:

username cisco_local password $UPerrP@ssw0rd

To make the use of SSH mandatory and disable remote access using Telnet, execute the following commands:

line vty 5 15
transport input ssh

Below is an example of the configuration for authorizing a Radius server for the Cisco Catalyst Switch:

aaa new-model

aaa authentication login default group radius local

aaa authorization exec default group radius if-authenticated

radius-server host 192.168.1.16 key Sfs34e#sf

#Specify your RADIUS server IP address and key for encryption (the shared secret that we specified on the RADIUS server)

service password-encryption

# Enable password encryption

If you have several Radius servers, add them to the group:

aaa group server radius radius_srv_group

server 192.168.1.16

server 192.168.101.16

This completes the minimum switch configuration and you can try to check Radius authentication on your Cisco device.

How to Configure RADIUS Authentication on Microtik (RouterOS) Devices?

In this part, we will show you how to configure RADIUS authentication for VPN user connections via a Mikrotik router (RouterOS based).

Open the Network Policy Server console (nps.msc) and create a new Radius client.

Select New RADIUS Client and configure the following settings:

  • Enable this RADIUS Client;
  • Friendly Name — enter the name of your Mikrotik router here;
  • Address — specific the IP address of the Mikrotik router;
  • Specify your Preshared secret key.

set up radius server

Create a new Network Policy with the following settings:

  • User Groups — specify the name of the domain user group that is allowed to authenticate on your Mikrotik router;
  • Authentication Type — MS-CHAPv2;
  • Tunnel Type — Point-to-Point Tunneling Protocol (PPTP);
  • Access Permissions — Access granted;
  • In the Configure Authentication Methods window, leave only MS-CHAPv2 and allow users to change expired passwords (User can change password after it has expired option);
  • Multilink and Bandwidth Allocation Protocol (BAP) – Do not allow Multilink connections;
  • In the Standard section, remove Service-Type – Framed and leave only Framed-Protocol PPP;
  • Encryptions — leave only the Strongest encryption (MPP 128-bit) method.

radius server setup

Once you have created a new policy, open the Network Policy Server settings.

Leave only the following UDP ports for the RADIUS server communications:

  • Authentication — 1812;
  • Accounting — 1813.

how to setup radius server

Check if these UDP ports are open in Microsoft Defender Firewall. If not, open them manually.

Now you need to configure the connection settings for Windows Server RADIUS in the Mikrotik configuration (we assume that PPP VPN Server is already configured on RouterOS to connect users).

Check in the PPTP server settings that only mschap2 is allowed to use for authentication.

how to configure radius server

Now we need to configure the connection to Radius NPS server. Select New Radius Server and specify the following options:

  • Service: ppp;
  • Address: IP address of the RADIUS server;
  • Secret: preshared key that you specified in the network policy settings;
  • Src/ Address: Mikrotik IP address from which traffic will be sent to NPS;
  • Authentication Port: 1812;
  • Accounting Port: 1813.

setting up radius server

Add appropriate access rules to Mikrotik Firewall.

Then go to Secrets > PPP Authentication and Accounting and enable the Use Radius option.

radius windows

It remains to configure a PPTP VPN connection to your Mikrotik VPN on users’ computers. To authenticate to Mikrotik, users can use their Active Directory accounts (accounts must be added to the AD group that you have specified when creating the Miktotik Network Policy on NPS).

How to Check the NPS/RADIUS Logs on Windows?

To enable NPS Server Radius Authentication logging, you need to enable the Network Policy Server audit policy. You can enable this policy via the local Group Policy Editor or with the following commands:

auditpol /get /subcategory:"Network Policy Server"

auditpol /set /subcategory:"Network Policy Server" /success:enable /failure:enable

install radius server

Now you can open the Event Viewer console (eventvwr.msc), go to the Windows Logs > Security, and filter the event by the Event ID 6272.

Network Policy Server granted access to a user.

windows server 2016 radius

If you need to find all NPS authorizations events for the specific user (Richard.Doe in this example), use the next PowerShell script:

$Query = @"
<QueryList>
<Query Id="0" Path="Security">
<Select Path="Security">
*[EventData[Data[@Name='SubjectUserName'] and (Data=theitbros\richard.doe')]] and
*[System[(EventID='6272')]]
</Select>
</Query>
</QueryList>
"@
$events = Get-WinEvent -FilterXML $Query
$ipaddr = @{ label="IP"; Expression={$_.properties[9].value} }
$events | select $ipaddr | group "IP" | format-table Count, Name -autosize
